Electromechanical Calibration for Transducer
Model: ELCS-500
Description:
The electromechanical calibration system is specially designed for the calibration of transducers. The calibration for transducer can calibrate the load cell accuracy within ±0.5%.
Description:
The electromechanical calibration system is specially designed for the calibration of transducers. The calibration for transducer can calibrate the load cell accuracy within ±0.5%.
Applied Standard
● Max. Load: 500kN Deviation of Load Value: 0.05%
● Load Repeatability: 0.05%
● Sensitivity: 0.02%
● Accuracy: ≤±0.0005%F.S
● Stabilization Time at Any Point: ≥30min
● Load/unload Time: any time set
● Load Speed: 0.001 to 250mm/min
● Stiffness: 600kN/mm

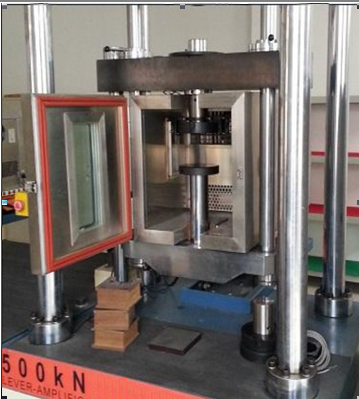

Load Calibration System with chamber from -40°C to +350°C
Load Frame
Superior Load Frame Design
Specification
● Max. Load: 500kN Deviation of Load Value: 0.05%
● Load Repeatability: 0.05%
● Sensitivity: 0.02%
● Accuracy: ≤±0.0005%F.S
● Stabilization Time at Any Point: ≥30min
● Load/unload Time: any time set
● Load Speed: 0.001 to 250mm/min
● Stiffness: 600kN/mm
Load Calibration System with chamber from -40°C to +350°C
