Superior Electromechanical Universal Testing Machine

Model: WDW-S Series
Description: WDW series computer control electromechanical universal testing machine is strictly designed according to ASTM, ISO, DIN, EN, JIS, GB, GOST standards. It is computer-controlled precise testing machine & suitable for all kinds of metallic & nonmetallic materials for tension, compression, bending, shearing and low cycle test etc. It features as high accuracy, high stability as well as high reliability. Equipped with PC system & printer, the test curve & result display, data processing and printing can be done easily. It can be configured with the specified hardware & software modulus for metal, spring, textile, rubber, plastic, paper and other applications. It is widely used in many fields such as industrial enterprises, R&D test institutes, materials laboratories and universities etc.
WDW-S superior material testing machine adopts extremely robust load frame, highly precise load weighting system, cutting-edge measuring & control system and intuitive modular application software. Configured with extensive range of accessories for various applications, it can provide the optimal testing solutions for your individual test requirements. With more than 20 years experiences involving in materials testing industry & based on the abundant application knowledge accumulated from all kinds of sectors, TE is completely capable of configuring the exactly suitable & affordable solutions & more accurate test systems to customer involving the choice of load frame, core measuring & control elements, software package, grip/fixtures etc. according to their specified test applications and any demanding requirements.

Applied Standard

● Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
● Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
● Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1

● Verification of Testing Frame and Specimen Alignment：ASTM E1012.

Load Frame

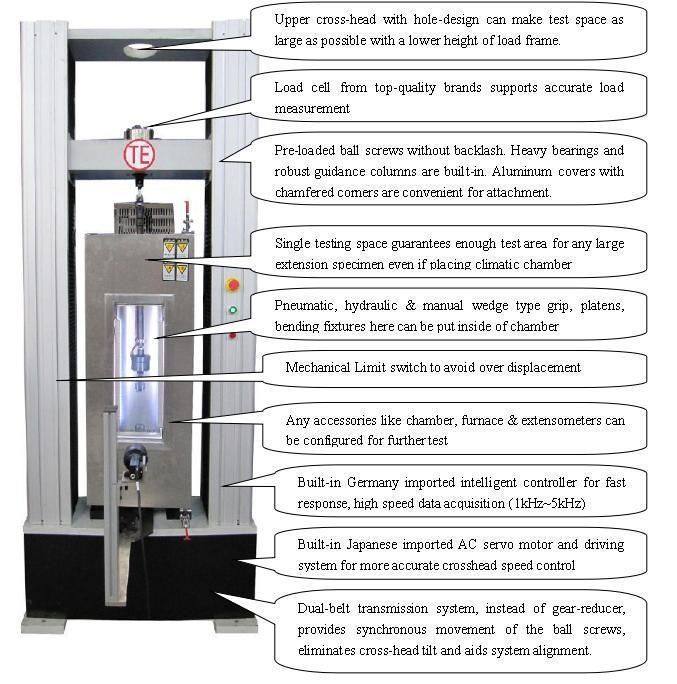

Superior Load Frame Design

According to load capacity & test application, the load frames are available in single column, table and floor type to meet a variety of test applications.


Single column machine is more suitable for biomedical, textiles, plastic film industries where test load requires low capacity; Dual-column table type is the main choice of rubber, plastic, composites & metal sectors where specimen needs wide test area and middle-range strength; While floor type is optimal units for most demanding applications of metal & alloys, fasteners etc. where specimen sizes and strength requires high capacity.


The design of frames takes human factors into considerations to ensure safety, reduce operator fatigue and provide the highest level of flexibility. Robust guidance column, high precise lead screw with pre-loaded bearings, thicker crosshead and bench base contribute to an extremely high lateral stiffness and superior precise alignment, which ensures to achieve repeatable test conditions and reliable results.


With high stiffness load frame, imported larger capacity servo motor, stable driving system and advanced control system, it can perform the low cycle fatigue test like square & trapezoidal waveform under 0.5Hz.



Specification




Video
